S5624XH-2Z-EI 10G Optical SDVoE Switch，with 24*10G SFP+ and 2*100G QSFP28，1*350W CRPS，1*Fan Module

  • High speed ports, low latency
  • IGMP broadcast
  • Buit-in SDVoE API Server
  • User-friendly GUI
  • Hot-swappable power module and fan module
  • Full L3 features(MPLS, VxLAN, IPran, BGP)

Highlight Features:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MPLS
  8. Layer 3 high-function
  9. SDVoE

Application Scenarios:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
  3. Pro AV Networks
Categories: ,
Get a quote
  • Previous Product
  • S5624XH-2Z-SI 10G Optical SDVoE Switch，with 24*10G SFP+ and 2*100G QSFP28，1*150W Power Supply，2* Fixed Fan
  • Next Product
  • S5524-2Q4X L3 Managed Switch with 24*1000M Base-T, 2*40G QSFP, 4*25G SFP28, Dual Power Modules, Dual Fan Modules

Description

OVERVIEW

Based on Carrier Grade High Performance Chip

S5600-EI series switches, which are designed based on sixth generation Ethernet switching chip. The Carrier Grade high-performance chip which help meet the requirement of Metro / Enterprise / Data Center / HCI networks.

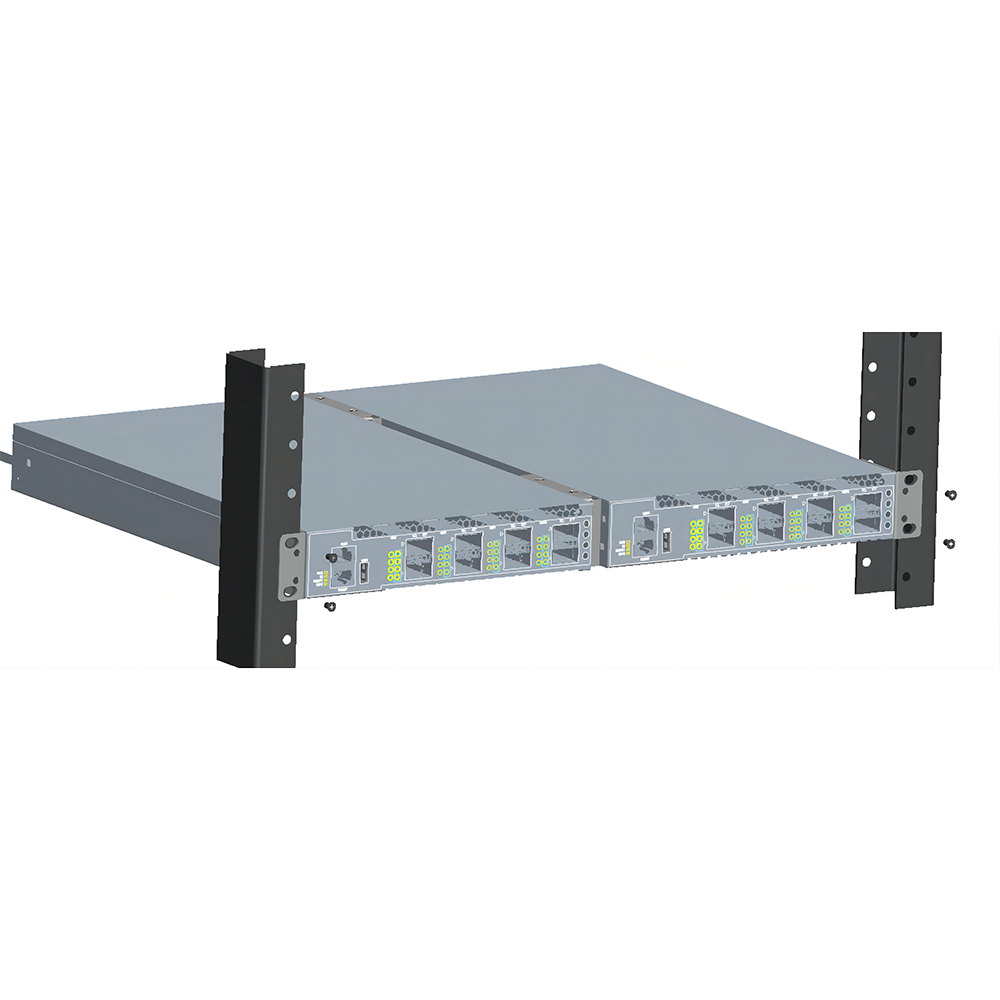

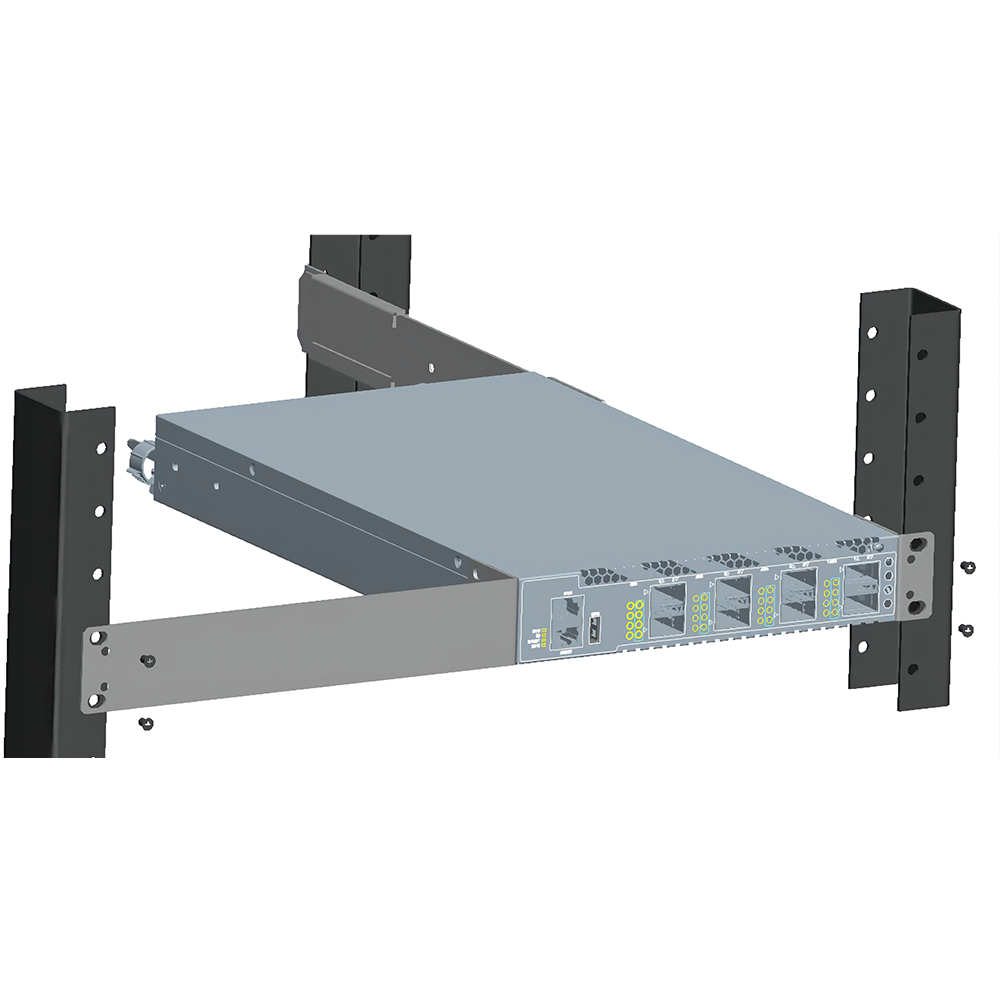

Flexible and Diverse Deployment modes, with 1U for Dual Physical Redundancy

Supports Multiple Dual-system Physical Hot Backup

Support MLAG Active-active dual-system hot backup

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

Innovative to Integrate SDVoE API Server

SDVoE (Software Defined Video over Ethernet) technology offers high performance, low latency, and reliability for transmitting 4K/8K or higher resolution images, ensuring an excellent visual experience in medical, enterprise, education and other industries. The built-in SDVoE API Server simplifies network architecture and reduces project costs.

System Design for Green and Energy Saving

Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving networks.

Customized Profile for Different Deployment Scenarios
The Flexible Table Management (FTM) technology offers multiple table size configuration profiles as optimized choices for different network scenarios. Support up to 98304 MAC address tables.



Intelligent Ethernet OAM: completed network fault management and performance guaranty

With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.

The fault management technique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.

S5600-EI series switches support remote management，network monitoring，network fault indication，remote loop back and MIB parameter retrieval according to the standard 802.3ah EFM.

Data Center Features

S5600-EI series switches supports leading edge Data Center features: Priority Flow Control (PFC), explicit Congestion Notification (ECN) and Data Center TCP, etc.
Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire Ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.

MLAG and overlay features are also good candidates for switches in data center network.

S5600-EI series switches supports RPC-API for SDN (Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.

High Reliability

S5600-EI series switches are powered by Hot-swappable power modules and fans；Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.

Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.

Patented technology “Sysmon” for CPU status monitoring can take action when system is error.

Outstanding QoS Control

S5600-EI series switches provides 13 hardware queues per-port (8 unicast queues, 4 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.

Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.

Triple-play Service Support with Bandwidth Guaranty for High Quality Application

S5600-EI series switches offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.

Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With HOS software, IPTV service and multicast latency control are fully supported.

Comprehensive Network Security Policy

S5600-EI series switches supports subscriber-class / switch-class / network-class security control.

IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.

ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm control and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.

Convenient Management features

Support varied management interfaces, include console port / inband network ports / outband network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, SSL, etc. to ensure security of management.

DATASHEET

Product Name S5624XH-2Z-EI S5648X-4Z-EI
Ethernet Ports -24 x 10G SFP+

-2 x 100G QSFP28

 -48 x 10G SFP+

-4 x 100G QSFP28
Power Supply 1*350W Hot-pluggable Power module 2*350W Hot-pluggable Power module
Power Supply 1* Console Port (RJ45)

1* Ethernet Management Port（RJ45）

 2* Console Port (RJ45)

2* Ethernet Management Port（RJ45）
Fans 1*Hot-pluggable Fan module 2*Hot-pluggable Fan module
Airflow Front-to-Rear Front-to-Rear
Switching Capacity 880Gbps 1.76Tbps
MAC address 98304 98304
Size 215mm(W)*356mm(D)*44mm(H) 430mm(W)*356mm(D)*44mm(H)
Weight 3.5kg (Includes 1 power weight) 7kg (Includes 2 power weight)
Operating Temperature 0ºC to 40ºC 0ºC to 40ºC
Storage Temperature -40ºC to 70ºC -40ºC to 70ºC
Operating Humidity 10% to 90% (Non-condensing) 10% to 90% (Non-condensing)
Storage Humidity 0 to 95%  (Non-condensing) 0 to 95%  (Non-condensing)
Temperature Alarm 50ºC 50ºC

SOFTWARE FEATURES

Software Features ● Support
○ Not Support
Feature Description EB License MS License MA License
Type Sub Type Feature
Ethernet basic features Interface Interface Ethernet interface operating modes(full duplex, half duplex, and auto-negotiation) ● ● ●
Ethernet interface operating rates ● ● ●
Jumbo Frame ● ● ●
port-xconnect ● ● ●
Flow-control Flow-control tx/rx ● ● ●
Storm-control Port based storm-control ● ● ●
VLAN based storm-control ○ ● ●
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast) ● ● ●
Port-isolate L2/L3/All  Port-isolate ● ● ●
Uni-direction isolate ● ● ●
L2 Protocol Tunnel L2 protocol tunnel (Support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP) ● ● ●
Forward mode Store-and-forward ● ● ●
Cut-through ● ● ●
VLAN VLAN Access mode Access/Trunk ● ● ●
Default VLAN ● ● ●
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based) ● ● ●
QinQ Basic QinQ ● ● ●
Selective QinQ ● ● ●
VLAN Mapping(1:1 VLAN Translation) ● ● ●
VLAN Mapping(N:1 VLAN Translation) ● ● ●
VLAN Statistics VLAN Statistics ● ● ●
Private VLAN Private VLANv ● ● ●
Voice VLAN Voice VLAN ● ● ●
Guest VLAN Guest VLAN ● ● ●
MAC MAC Address Table Automatic learning and aging of MAC addresses ● ● ●
Refresh the FDB based on ports and vlans ● ● ●
Hardware Learning ● ● ●
Static and dynamic  MAC address entries ● ● ●
Blackhole MAC ● ● ●
MAC Flapping detect MAC Flapping detect ● ● ●
Port bridge Port Bridge ● ● ●
LAG Link aggregation Static-LAG & LACP ● ● ●
LAG load balance(SLB) ● ● ●
LAG load balance(DLB) ● ● ●
LAG load balance(RR) ● ● ●
LAG Self-healing ● ● ●
Link aggregation weighting ● ● ●
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol ● ● ●
RSTP Rapid Spanning-Tree Protocol ● ● ●
MSTP Multi-instance Spanning-Tree Protocol ● ● ●
Spanning-Tree Protocol Protection BPDU Filter/Guard ● ● ●
Root Guard ● ● ●
Loop Guard ● ● ●
Anti TC-BPDU attack ● ● ●
ERPS ERPS Single ERPS ring ● ● ●
tangent ERPS rings ● ● ●
intersecting ERPS rings ● ● ●
compatible with RRPP ● ● ●
G.8031 G.8031 G.8031(Ethernet Linear Network Protection) ○ ● ●
G.8032 G.8032 G.8032 V1 & V2 ○ ● ●
Single Ring ○ ● ●
Sub Ring ○ ● ●
Loop back Detect Loop back Detect Loopback-detection ● ● ●
Layer2 Multicast Layer2 Multicast IGMP snooping IGMPv1/v2/v3 Snooping ● ● ●
Fast leave ● ● ●
Static IGMP snooping group ● ● ●
MVR MVR(Multicast VLAN Registration) ● ● ●
IPv4 Forwarding ARP ARP Static and dynamic ARP entries ● ● ●
Aging of ARP entries ● ● ●
Gratuitous ARP ● ● ●
ARP proxy basic ARP-Proxy ● ● ●
local ARP-Proxy ● ● ●
IPv4 Static Routes IPv4 Static Routes IPv4 Static Routes ● ● ●
Black hole Routes ● ● ●
co-work with IP SLA ● ● ●
VRF(Virtual Routing and Forwarding) ● ● ●
uRPF check ● ● ●
RIP RIP v1/v2 ● ● ●
OSPFv2 OSPF v2 ○ ● ●
IS-IS IS-IS ○ ● ●
segment-routing based on IS-IS protocol extension ○ ○ ●
BGP IBGP ○ ● ●
EBGP ○ ● ●
Graceful-Restart helper ○ ● ●
Route policy Route-map ● ● ●
IPv4 prefix-list ● ● ●
PBR PBR(Policy-based Routing) ● ● ●
ICMP ICMP redirect ● ● ●
ICMP unreachables ● ● ●
ECMP ECMP(SLB) ● ● ●
ECMP(DLB) ● ● ●
ECMP(RR) ● ● ●
ECMP Self-healing ● ● ●
IP unnumbered IP unnumbered ● ● ●
IPv4 Multicast Routing IGMP IGMP v1/v2/v3 ● ● ●
IGMP-proxy ● ● ●
IGMP SSM mapping ● ● ●
PIM PIM-SM ○ ● ●
PIM-SSM ○ ○ ●
PIM-DM ○ ● ●
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6 ○ ● ●
NDP NDP ○ ● ●
PMTU PMTU ○ ● ●
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes ○ ● ●
IPv6 Blackhole Routes ● ● ●
RIPng RIPng ○ ● ●
BGP4+ BGP4+ ○ ● ●
OSPFv3 OSPF v3 ○ ● ●
IS-IS IS-IS ○ ● ●
VRRP v3 VRRP v3 ● ● ●
Pv6 Multicast Routing MLD v1/v2 MLD v1/v2 ○ ● ●
MLD v1/v2 snooping MLD v1/v2 snooping ○ ● ●
MVR6 MVR6 ○ ● ●
PIM-SM v6 PIM-SM v6 ○ ● ●
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 tunnel ○ ● ●
6to4 Tunnel 6to4 tunnel ○ ● ●
ISATAP Tunnel ISATAP tunnel ○ ● ●
IPv6 DHCPv6 DHCPv6 Relay ○ ● ●
DHCPv6 snooping ○ ● ●
IPv6 Prefix List IPv6 Prefix-list ○ ● ●
Device reliability features BFD BFD Detecting BFD for static routes ○ ● ●
Detecting BFD for OSPFv2 ○ ● ●
Detecting IS-IS BFD. Procedure ○ ● ●
Detecting BGP BFD ○ ● ●
Detecting BFD for VRRP/Track ○ ● ●
Detecting BFD for the PBR ○ ● ●
VRRP VRRP VRRP ● ● ●
Track for VRRP ● ● ●
Smart link Smart link multi-instance ● ● ●
load balance ● ● ●
Multi-Link ● ● ●
Monitor-link ● ● ●
MLAG MLAG MLAG basic ● ● ●
MLAG orphan Port ● ● ●
Ethernet OAM EFM EFM (802.3ah) Auto detection ○ ● ●
Network fault detection ○ ● ●
Network fault handle ○ ● ●
remote loop back ○ ● ●
CFM CFM (802.1ag) Hardware CCM detect ○ ● ●
Linktrace ○ ● ●
Loopback ○ ● ●
Y.1731 Y.1731 Latency and Jitter measure ○ ● ●
QoS QoS Traffic classification Traffic classification based on COS/DSCP (simple classification) ● ● ●
Traffic classification based on ACL ( complex classification) ● ● ●
Traffic classification based on inner header of the tunnel packets ● ● ●
Traffic behaviors Queue scheduling ● ● ●
Remark the priority fields(COS/DSCP) of the packet based on ACL ● ● ●
Remark the priority fields(COS/DSCP) of the packet based on ACL ● ● ●
Flow redirection ● ● ●
Flow mirror ● ● ●
Traffic policing Traffic policing based on direction(in/out)  of Port ● ● ●
Traffic policing based on direction(in/out) of VLAN ● ● ●
Traffic policing based on direction(in/out) of flow ● ● ●
Traffic policing based on direction(in/out) of aggregated flow ● ● ●
Traffic shaping Queue based traffic shaping ● ● ●
Port based traffic shaping ● ● ●
Congestion management SP(Strict Priority)scheduling ● ● ●
WDRR(Weighted Deficit Round Robin)scheduling ● ● ●
SP + WDRR mixed scheduling ● ● ●
Congestion avoidance TD(Tail Drop) ● ● ●
WRED(Weighted Random Early Detection) ● ● ●
Traffic statistics Packet counts and bytes statistics based on traffic classification ● ● ●
Packet counts and bytes statistics based on the color after traffic policing ● ● ●
Forwarded and discarded packet counts and bytes statistics ● ● ●
ECN (Explicit congestion) Tail Drop-based ECN tag ○ ● ●
WRED based ECN tagx ○ ● ●
Shape rate speed based ECN tagx ○ ● ●
Network virtualization VARP Virtual gateway VARP（Virtual-ARP） ● ● ●
Support IPv4 ● ● ●
Support IPv6 ● ● ●
VARP support subnet ● ● ●
Tunnel VxLAN Manual configure VxLAN tunnel ○ ● ●
VxLAN distributed gateway ○ ● ●
VxLAN active-active access ○ ● ●
VxLAN realize Overlay network ○ ● ●
L2 Protocol packet pass through ○ ● ●
Modify the DSCP of the outer VxLAN header ○ ● ●
Edit DSCP in VxLan outer header ○ ● ●
BGP EVPN ○ ○ ●
Support to enable/disable overlay split horizon per-VNI ○ ● ●
Support IPv4 ○ ● ●
Support IPv6 ○ ● ●
GRE Tunnel GRE Tunnel ○ ● ●
NVGRE Tunnel NVGRE Tunnel ○ ● ●
GENEVE Tunnel GENEVE Tunnel ○ ● ●
Network convergence DCB DCBX LLDP support DCBX TLV ○ ● ●
PFC PFC ○ ● ●
Metropolitan Network IPRAN LDP LDP ○ ○ ●
MPLS Forwarding MPLS Forwarding ○ ○ ●
VPWS VPWS ○ ○ ●
VPLS VPLS ○ ○ ●
MPLS OAM MPLS OAM ○ ○ ●
MPLS Stats MPLS Stats ○ ○ ●
L2VPN L2VPN ○ ○ ●
L3VPN L3VPN ○ ○ ●
ACL MPLS ACL ○ ○ ●
QoS MPLS QoS ○ ○ ●
SR Segment-routing based on MPLS ○ ○ ●
Safety and management System Security SSH SSH v1/v2 ● ● ●
RSA Key generation ● ● ●
RADIUS RADIUS ● ● ●
TACAS+ TACAS+ ● ● ●
AAA Authentication ● ● ●
Authorization ● ● ●
Accounting ● ● ●
Dot1x Port based dot1x ● ● ●
MAC based dot1x ● ● ●
Guest VLAN ● ● ●
ACL MAC/IP ACL ● ● ●
Basic Mode ACL ● ● ●
Port-group ACL ● ● ●
VLAN-group ACL ● ● ●
IPv6 ACL ● ● ●
ACL UDF ● ● ●
Global ACL ● ● ●
Time Range ● ● ●
ARP inspection ARP inspection ● ● ●
IP source guard IP source guard ● ● ●
Port Security Limitation on MAC address learning on interface ● ● ●
VLAN Security Limitation on MAC address learning on VLAN ● ● ●
Control Plane Policy (COPP) Black list/wihte list ● ● ●
Rate limit ● ● ●
CPU Traffic Limit CPU Traffic Limit ● ● ●
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) ● ● ●
Login filter Telnet/SSH ACL filtering ● ● ●
Telnet/SSH IPv6 ACL filtering ● ● ●
Link-Flapping detection Link-Flapping detection ● ● ●
Network Management DHCP DHCP Server ● ● ●
DHCP Relay ● ● ●
DHCP snooping ● ● ●
DHCP Client ● ● ●
DHCP option 82 ● ● ●
DHCP option 252 ● ● ●
RMON RMON ● ● ●
sFlow sFlow v4/v5 ● ● ●
IP SLA Support IPv4 ● ● ●
Support IPv6 ● ● ●
Support Track ● ● ●
IPFIX IPFIX ○ ● ●
Latency/Buffer monitor Latency monitor ○ ● ●
Buffer monitor ○ ● ●
EFD Elephant flow detection ● ● ●
NTP NTP(Network Time Protocol) ● ● ●
PTP（IEEE 1588 ） Transparent clock （TC） ○ ○ ●
Errdisable Errdisable detection and recovery ● ● ●
DNS Static DNS Client ● ● ●
LLDP LLDP ● ● ●
Configuration and maintenance Terminal Services Command Line Interface Configurations through CLI (Command Line Interface) ● ● ●
Help information Banner configuration ● ● ●
Help information in English ● ● ●
Terminal Services Vty Terminal service ● ● ●
Console Terminal service ● ● ●
Configuration Management Management interface In-band management interface and configuration ● ● ●
Out-band management interface and configuration ● ● ●
User privilege management privileged user priority and privileged commands ● ● ●
SNMP Network management based on SNMPv1/v2c/v3 ● ● ●
Public and private MIB ● ● ●
Public and private Trap ● ● ●
WEB Configuration and management based on WEB UI ● ● ●
RPC-API Configuration and management based on RPC-API ● ● ●
Smart config Smart Config(Automatically configuration when system start) ● ● ●
OVSDB Configuration and management based on OVSDB ● ● ●
Configuration and management based on RPC-API change the system specifications by choose different STM Profiles ● ● ●
License control Feature configuration based on License ● ● ●
Netconf Netconf ● ● ●
Restore factory default Restore factory default configuration ● ● ●
File System File system File system(support directory and file management) ● ● ●
Upload and download Upload and download files through FTP or TFTP ● ● ●
Upload and download files in SCP mode ● ● ●
File transfer in Xmodem mode ● ● ●
Diagnosis and Maintenance Debug per-module Debug features ● ● ●
ICMP Debug ● ● ●
BHM Software process monitor: BHM(Beat Heart Monitor) ● ● ●
Hardware Watch Dog ● ● ●
VCT VCT(Virtual Cable Test) ● ● ●
System diagnostics Detailed Diagnostic-information collection ● ● ●
Reboot Manual reboot ● ● ●
Schedule Reboot ● ● ●
Reboot Information logging ● ● ●
Network diagnostics Ping ● ● ●
IPv6 Ping ● ● ●
Traceroute ● ● ●
Network diagnostics CPU usage display and  alarm ● ● ●
Memory  usage display and  alarm ● ● ●
Supports CPU/ memory historical display ● ● ●
Supports CPU/ memory historical display ● ● ●
User operation logs ● ● ●
Management of logs, alarms, and debugging information ● ● ●
Support interface bandwidth usage alarms ● ● ●
Support Log servers with IPv4 addresses ● ● ●
Support Log servers with IPv6 addresses ● ● ●
Mirror Port mirror ● ● ●
Flow mirror ● ● ●
Remote mirror ● ● ●
Multi-destination mirror(m:n) ● ● ●
Use CPU as mirror source ● ● ●
Use CPU as mirror destination and analyze packet ● ● ●
ERSPAN ● ● ●
CPU statistics To CPU/From CPU packets statistics ● ● ●
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace) ● ● ●
UDLD UDLD(Unidirectional Link Detection) ● ● ●
Unidirectional Unidirectional forwarding of the fiber ● ● ●
Loop back port loop back ● ● ●
hardware loop back(internal/external) ● ● ●
System time Time configuration ● ● ●
Timezone ● ● ●
Version upgrade System software upgrade Local upgrade ● ● ●
Upgrade from TFTP ● ● ●
Uboot upgrade Upgrade the Uboot online ● ● ●

Related products
