S5624TH-2Z-EI 24*10G Base-T and 2*100G QSFP28 Half-width Switches, 1*350W CRPS，1*Fan Module, support SDVoE

  • Support Multiple Hot Backup Protocols
  • Support Two-node Power Redundancy
  • Innovative to Integrate SDVoE API Server
  • Unified WEB GUI Interface
  • Hot-swappable Power and Fan Modules
  • Full Layer3 Software Features

Highlight Features:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MLAG
  8. SDVoE

Application Scenarios:

  1. Enterprise /Campus Networks
  2. SDVoE Pro AV Networks
  3. SMB
Categories: ,
Get a quote
  • Previous Product
  • S5624TH-2Z-SI 24*10G Base-T and 2*100G QSFP28 Half-width Switches, 1*300W Fixed Power, 3*Fixed Fan, support SDVoE
  • Next Product
  • S5548P-2Q4X-SI 48 Port 10/100/1000M BASE-T L3 Managed Ethernet Switch with 2*40Gb QSFP And 4*25G/10G Uplink, 1* 890W fixed power, 4* Fixed Fan

Description

Product Overview

The DynamicDuo Series switches designed on a domestic popular switch chip, which called VastLakes Series Chip platform with 10G/40G/100G high speed ports and rich features, these switches will perfectly meets the requirements of Campus, Enterprise, Data Center, and SDVoE networks.

Key features of the DynamicDuo Series Switches

  • Flexible installation and deployment methods

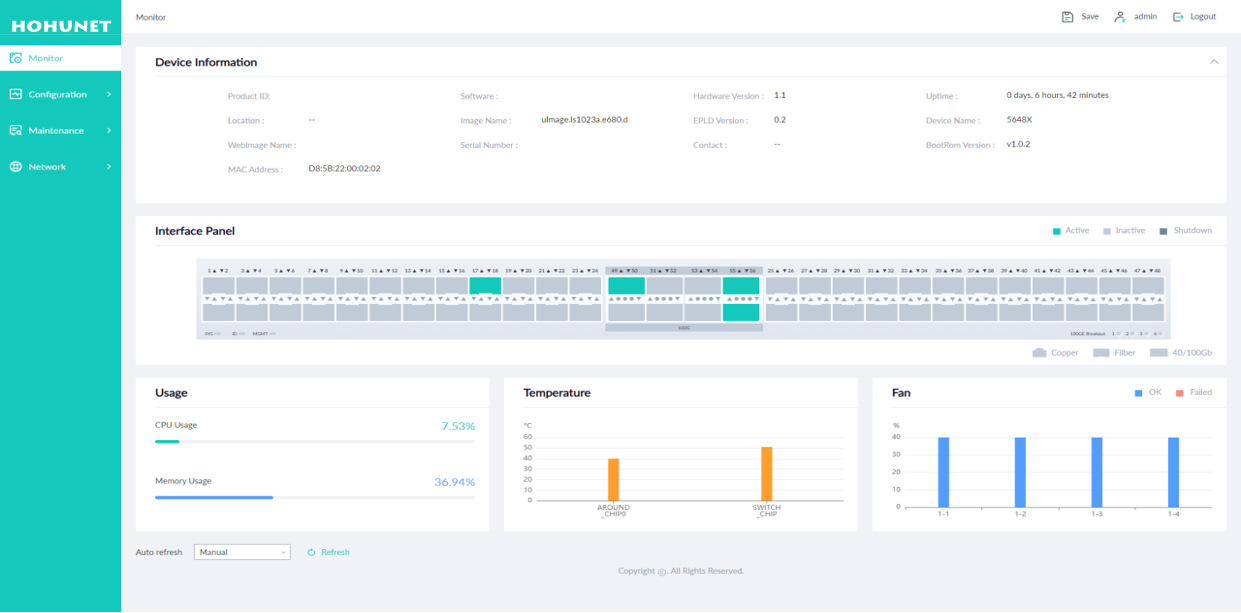

  • Visual Web GUI and multiple management MethodsHOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users. The DynamicDuo Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.
  • Integrate SDVoE API Server

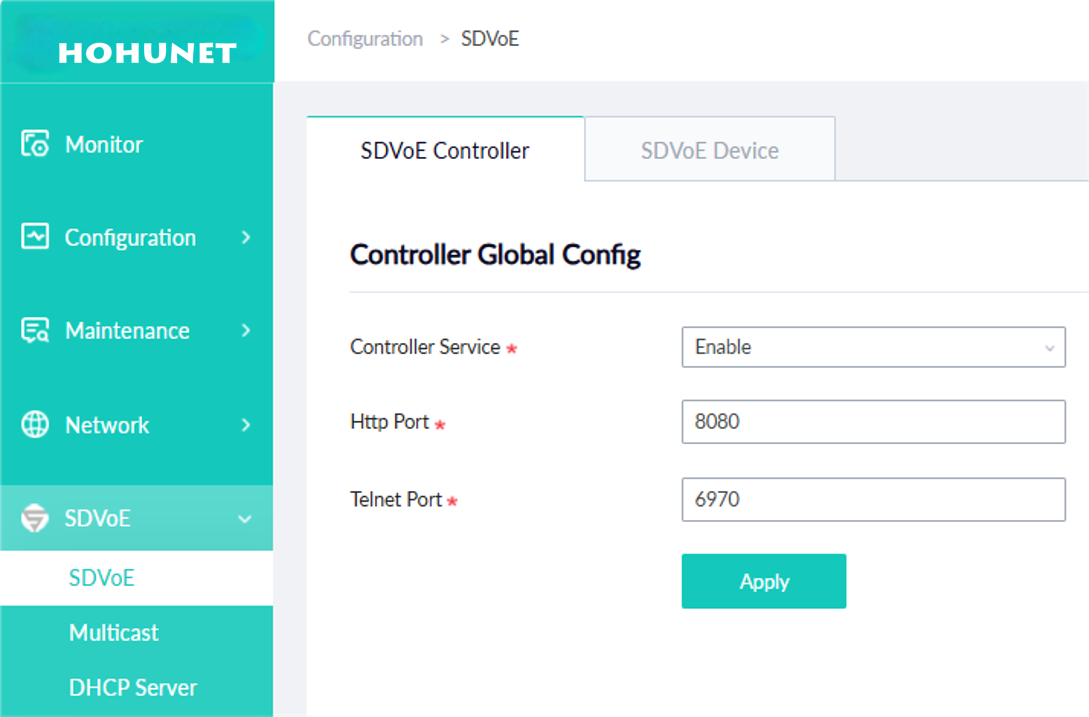

    SDVoE switches built-in SDVoE API Server, users no need to purchase additional SDVoE controller, simplifying the network architecture. The web page is simple and easy to operate, without complicated steps, only the following three simple parts: SDVoE, Multicast, DHCP Server, you can complete the relevant configuration of SDVoE, and reduce the overall time    cost and project cost of users.
  • Supports Multiple Dual-system Physical Hot Backup
  • Support MLAG Active-active dual-system hot backup
    Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

Hardware Specification

Model S5624TH-2Z-EI
Service Ports 24 x 10G Base-T
2 x 100G QSFP28
Management Ports Console: 1 x RJ45 RS232

Ethernet: 1 x 1G Port
Power supply 1 x 350W CRPS
Cooling System 1 x hot-swappable Fan Module (front-to-back airflow)
Memory eMMc: 8GB on all models

DRAM: 2GB on all models
CPU Dual-core processor, ARM A53
Packet Switch capacity 880 Gbps (bidirectional)
Layer 2/Layer 3 Throughput 1309.44Mpps (bidirectional)
Power consumption
(Worst case, all ports used, line-rate traffic)		 101W
Typical Power consumption 100W
Acoustic in dBA 45.47 dB
Cooling [CFM]  38.49
MTBF ≥90000H
Operating altitude ≤5000m
Dimensions 21.5×4.4×35.6cm
Operating temperature 0ºC to 40ºC
Chipset Platform VastLakes

Software Specification

Tips for reading：

EB-Basic license MS-Advanced license MA-Metropolitan Area Network License

  • -support X-nonsupport
Type Sub Type Feature Description EB MS MA REMARK
Ethernet basic features Ethernet interface Ethernet interface operating modes(full duplex, half duplex, and auto-negotiation) ● ● ●
Ethernet interface operating rates ● ● ●
Jumbo Frame ● ● ●
port-xconnect ● ● ●
Flow-control Flow-control tx/rx ● ● ●
storm-control Port based storm-control ● ● ●
VLAN based storm-control ● ● ●
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast) ● ● ●
Port-isolate L2/L3/All  Port-isolate ● ● ●
Uni-direction isolate ● ● ●
L2 Protocol Tunnel L2 Protocol Tunnel(support CFM/DOT1X/SLOW-PROTO/STP ● ● ●
Forward mode Store-and-forward ● ● ●
Cut-through ● ● ●
VLAN VLAN Access mode Access/Trunk ● ● ●
Default VLAN ● ● ●
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based) ● ● ●
QinQ Basic QinQ ● ● ●
Selective QinQ ● ● ●
VLAN Mapping(1:1 VLAN Translation) ● ● ●
VLAN Statistics VLAN Statistics ● ● ●
Private VLAN Private VLAN ● ● ●
Voice VLAN Voice VLAN ● ● ●
Guest VLAN Guest VLAN ● ● ●
MAC MAC Address Table Automatic learning and aging of MAC addresses ● ● ●
Hardware Learning ● ● ●
Static and dynamic  MAC address entries ● ● ●
Blackhole MAC ● ● ●
MAC Flapping detect MAC Flapping detect ● ● ●
Port Bridge Port Bridge ● ● ●
LAG Link aggregation Static-LAG & LACP ● ● ●
LAG load balance(SLB) ● ● ●
LAG load balance(DLB) ● ● ●
LAG load balance(RR) ● ● ●
LAG Self-healing ● ● ●
Link aggregation weighting ● ● ●
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol ● ● ●
RSTP Rapid Spanning-Tree Protocol ● ● ●
MSTP Multi-instance Spanning-Tree Protocol ● ● ●
Spanning-Tree Protocol Protection BPDU Filter/Guard ● ● ●
Root Guard ● ● ●
Loop Guard ● ● ●
Anti TC-BPDU attack ● ● ●
ERPS ERPS Single ERPS ring ● ● ●
tangent ERPS rings ● ● ●
intersecting ERPS rings ● ● ●
compatible with RRPP ● ● ●
Loop back Detect Loop back Detect Loop back detection ● ● ●
Layer2 Multicast Layer2 Multicast IGMP Snooping IGMPv1/v2/v3 Snooping ● ● ●
Fast leave ● ● ●
Static IGMP snooping group ● ● ●
MVR MVR(Multicast VLAN Registration) ● ● ●
IPv4 Forwarding ARP ARP Static and dynamic ARP entries ● ● ●
Aging of ARP entries ● ● ●
Gratuitous ARP ● ● ●
ARP proxy basic ARP-Proxy ● ● ●
local ARP-Proxy ● ● ●
IPv4 Unicast Routing IPv4 Static Routes IPv4 Static Routes ● ● ●
Black hole Routes ● ● ●
co-work with IP SLA ● ● ●
VRF(Virtual Routing and Forwarding) ● ● ●
uRPF check ● ● ●
RIP RIPv1/v2 ● ● ●
OSPFv2 OSPFv2 X ● ●
IS-IS IS-IS X ● ●
BGP IBGP X ● ●
EBGP X ● ●
Route policy Route-map ● ● ●
IPv4 prefix-list ● ● ●
PBR PBR(Policy-based Routing) ● ● ●
ICMP ICMP redirect ● ● ●
ICMP unreachable ● ● ●
ECMP ECMP(SLB) ● ● ●
ECMP(DLB) ● ● ●
ECMP(RR) ● ● ●
ECMP Self-healing ● ● ●
IPv4 Multicast Routing IGMP IGMPv1/v2/v3 ● ● ●
IGMP-Proxy ● ● ●
IGMP SSM Mapping ● ● ●
PIM PIM-SM X ● ●
PIM-DM X ● ●
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6 X ● ●
NDP NDP X ● ●
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes X ● ●
RIPng RIPng X ● ●
OSPFv3 OSPFv3 X ● ●
IS-IS IS-IS X ● ●
BGP4+ BGP4+ X ● ●
IPv6 Multicast Routing MLD v1/v2 MLD v1/v2 X ● ●
MLD v1/v2 Snooping MLD v1/v2 Snooping X ● ●
MVR6 MVR6 X ● ●
PIM-SM v6 PIM-SM v6 X ● ●
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 Tunnel X ● ●
6to4 Tunnel 6to4 Tunnel X ● ●
ISATAP Tunnel ISATAP Tunnel X ● ●
IPv6 Service DHCPv6 DHCPv6 Relay X ● ●
DHCPv6 Snooping X ● ●
IPv6 Prefix List IPv6 Prefix-list X ● ●
Device reliability features BFD BFD BFD for Static route X ● ●
BFD for OSPFv2 X ● ●
BFD for VRRP/Track X ● ●
BFD for PBR X ● ●
VRRP VRRP VRRP ● ● ●
Track for VRRP ● ● ●
Smart Link Smart Link multi-instance ● ● ●
load balance ● ● ●
Multi-Link ● ● ●
Monitor-link ● ● ●
MLAG MLAG MLAG basic ● ● ●
MLAG orphan Port ● ● ●
Stacking Stacking Maximum number of stacked devices: 8
Stack port: Any port or AGG		 ● ● ● Requires a special licence
ethernet OAM EFM EFM (802.3ah) Auto detection X ● ●
Network fault detection X ● ●
Network fault handle X ● ●
remote loop back X ● ●
CFM CFM (802.1ag) Hardware CCM detect X ● ●
MAC Ping X ● ●
MAC Trace X ● ●
Y.1731 Y.1731 Loss measure(LM) X ● ● Not available on BigFlow and SerdesX Platform
Latency and Jitter measure(DM) X ● ●
PoE features PoE System Power management Power supply on-spot detection ● ● ●
Power supply capability detection ● ● ●
Power capability auto configuration (PSE) ● ● ●
Power Supply Management Legacy PD detection ● ● ●
PD max power management ● ● ●
PD priority management ● ● ●
Power Supply Task Plan management(Not ready) ● ● ●
PD Mandatory power supply ● ● ●
operations management PSE log ● ● ●
PSE Chipset temperature inquire ● ● ●
PSE firmware update ● ● ●
QoS features QoS Traffic classification Traffic classification based on COS/DSCP (simple classification) ● ● ●
Traffic classification based on ACL ( complex classification) ● ● ●
Traffic classification based on inner header of the tunnel packets ● ● ●
Traffic behaviors Queue scheduling ● ● ●
Remark the priority fields(COS/DSCP) of the packet based on ACL ● ● ●
Remark the priority fields(COS/DSCP) of the packet based on Table Map ● ● ●
Flow redirection ● ● ●
Flow mirror ● ● ●
Traffic policing Traffic policing based on direction(in/out)  of Port ● ● ●
Traffic policing based on direction(in/out) of VLAN ● ● ●
Traffic policing based on direction(in/out) of flow ● ● ●
Traffic policing based on direction(in/out) of aggregated flow ● ● ●
Traffic shaping Queue based traffic shaping ● ● ●
Port based traffic shaping ● ● ●
Congestion management SP(Strict Priority)scheduling ● ● ●
WDRR(Weighted Deficit Round Robin)scheduling ● ● ● Not currently supported on SerdesX platform
SP + WDRR mixed scheduling ● ● ● Not available on SerdesX platform
Congestion avoidance TD(Tail Drop) ● ● ●
WRED(Weighted Random Early Detection) ● ● ●
Traffic statistics Packet counts and bytes statistics based on traffic classification ● ● ●
Packet counts and bytes statistics based on the color after traffic policing ● ● ●
Forwarded and discarded packet counts and bytes statistics ● ● ●
ECN (Explicit congestion ECN tags based on Tail Drop ● ● ● Not available SerdesX platform
ECN tags based on WRED ● ● ●
Data Center VARP Virtual gateway VARP(Virtual-ARP) ● ● ●
VARP subnet ● ● ●
Tunnel VxLAN Manual configure VxLAN tunnel ● ● ●
VxLAN distributed gateway ● ● ●
VxLAN active-active access ● ● ●
Interconnect across Data Centers based on VxLAN ● ● ●
Edit DSCP in VxLan outer header ● ● ●
BGP EVPN ● ● ●
Support to enable/disable overlay split horizon per-VNI ● ● ●
GRE Tunnel GRE Tunnel ● ● ●
NVGRE Tunnel NVGRE Tunnel ● ● ●
GENEVE Tunnel GENEVE Tunnel ● ● ●
DCB DCBX LLDP support DCBX TLV ● ● ●
PFC PFC ● ● ●
Metro Feature MPLS LDP LDP X X ●
MPLS Forwarding MPLS Forwarding X X ●
VPWS VPWS (L2VPN) X X ●
VPLS VPLS (L2VPN) X X ●
L3VPN L3VPN X X ●
MPLS OAM MPLS OAM X X ●
MPLS Stats MPLS Stats X X ●
ACL ACL X X ●
Qos Qos X X ●
Security and management System Security SSH SSHv1/v2 ● ● ●
RSA Key generation ● ● ●
RADIUS RADIUS ● ● ●
TACAS+ TACAS+ ● ● ●
AAA Authentication ● ● ●
Authorization ● ● ●
Accounting ● ● ●
Dot1x Port based dot1x ● ● ●
MAC based dot1x ● ● ●
Guest VLAN ● ● ●
ACL MAC/IP ACL ● ● ●
Basic Mode ACL ● ● ●
Port-group ACL ● ● ●
VLAN-group ACL ● ● ●
IPv6 ACL ● ● ●
ACL UDF ● ● ●
Time Range ● ● ●
ARP Inspection ARP Inspection ● ● ●
IP Source Guard IP Source Guard ● ● ●
Port Security Limitation on MAC address learning on interface ● ● ●
VLAN Security Limitation on MAC address learning on VLAN ● ● ●
Control Plane Policy (COPP) Black list/wihte list ● ● ●
Rate limit ● ● ●
CPU Traffic Limit CPU Traffic Limit ● ● ●
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) ● ● ●
Login filter Telnet/SSH ACL filtering ● ● ●
Telnet/SSH IPv6 ACL filtering ● ● ●
MAC Security MacSec(802.1AE) ● ● ● Not available on BigFlow Platform
Link-Flapping detection Link-Flapping detection ● ● ●
Network Management DHCP DHCP Server ● ● ●
DHCP Relay ● ● ●
DHCP Snooping ● ● ●
DHCP Client ● ● ●
DHCP Option82 ● ● ●
DHCP Option252 ● ● ●
RMON RMON ● ● ●
sFlow sFlow v4/v5 ● ● ●
IP SLA IP SLA ● ● ●
IPFIX IPFIX ● ● ●
EFD Elephant Flow Detection ● ● ● Not available on BigFlow Platform
NTP NTP(Network Time Protocol) ● ● ●
PTP（IEEE 1588） TC（Support P2P/E2E、Ethernet/Udp Transport） ● ● ●
BC/OC(Support OneStep/TwoStep、Request-response/Peer-delay Ethernet/Udp Transport) ● ● ●
Err-disable Err-disable detection and recovery ● ● ●
DNS Static DNS Client ● ● ●
LLDP LLDP ● ● ●
Terminal Services Command Line Interface Configurations through CLI (Command Line Interface) ● ● ●
Help information Banner configuration ● ● ●
Help information in English ● ● ●
Terminal service Vty Terminal service ● ● ●
Console Terminal service ● ● ●
Management interface In-band management interface and configuration ● ● ●
Out-band management interface and configuration ● ● ●
Configuration and maintenance Configuration Management SNMP Network management based on SNMPv1/v2c/v3 ● ● ●
Public and private MIB ● ● ●
Public and private Trap ● ● ●
WEB Configuration and management based on WEB UI ● ● ●
Cloud Management Automatic device connection management ● ● ● Needs to be used  with the DHCS Cloud Management system. DHCS can be deployed on public clouds or in a private environment.
Zero-configuration deployment ● ● ●
Automatic network topology ● ● ●
Network monitoring and alarm notification ● ● ●
Configuration and one-click rollback ● ● ●
Cross-network tunneling connection to network device(web/ssh/telnet) ● ● ●
Scheduled tasks deployment ● ● ●
RPC-API Configuration and management based on RPC-API ● ● ●
Smart Config Smart Config(Automatically configuration when system start) ● ● ●
system profile configuration change the system specifications by choose different STM Profiles ● ● ●
Restore factory default configuration Restore factory default configuration ● ● ●
File System File system File system(support directory and file management) ● ● ●
Upload and download Upload and download files through FTP or TFTP ● ● ●
Upload and download files through Xmodem ● ● ●
Debugging And Maintenance Debug per-module Debug features ● ● ●
ICMP Debug ● ● ●
BHM Software process monitor: BHM(Beat Heart Monitor) ● ● ●
Hardware Watch Dog ● ● ●
Log & alarm CPU usage display and  alarm ● ● ●
Memory  usage display and  alarm ● ● ●
Device temperature, PSU, FAN, status display and alarm ● ● ●
User operation logs ● ● ●
Management of logs, alarms, and debugging information ● ● ●
VCT VCT(Virtual Cable Test) ● ● ●
system diagnostics Detailed Diagnostic-information collection ● ● ●
Reboot Manual reboot ● ● ●
Schedule Reboot ● ● ●
Reboot Information logging ● ● ●
network diagnostics Ping ● ● ●
IPv6 Ping ● ● ●
Trace route ● ● ●
mirror Port mirror ● ● ●
Flow mirror ● ● ●
Remote mirror ● ● ●
Multi-destination mirror(m:n) ● ● ●
Use CPU as mirror source ● ● ●
Use CPU as mirror destination and analyze packet ● ● ●
ERSPAN ● ● ●
CPU statistics To CPU/From CPU packets statistics ● ● ●
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace) ● ● ●
UDLD UDLD(Unidirectional Link Detection) ● ● ●
unidirectional unidirectional forwarding of the fiber ● ● ●
Loop back port loop back ● ● ●
hardware loop back(internal/external) ● ● ●
System time Time configuration ● ● ●
Timezone ● ● ●
Software System software upgrate Update via TFTP ● ● ●
upgrate Uboot upgrate Uboot upgrate ● ● ●

License

Items Description
Software License EB, Basic L3 software features, Preinstalled
Software License MS, L3 enhance features software license key
Software License MA, MPLS features software license key
Software License ST, Stacking feature software license key



Download

DynamicDuo Series switches VastLakes datasheet_EN_V1.1

HOS Software Features_EN_V2.3

Performance of VastLakes Platform_EN_3.1

Related products
