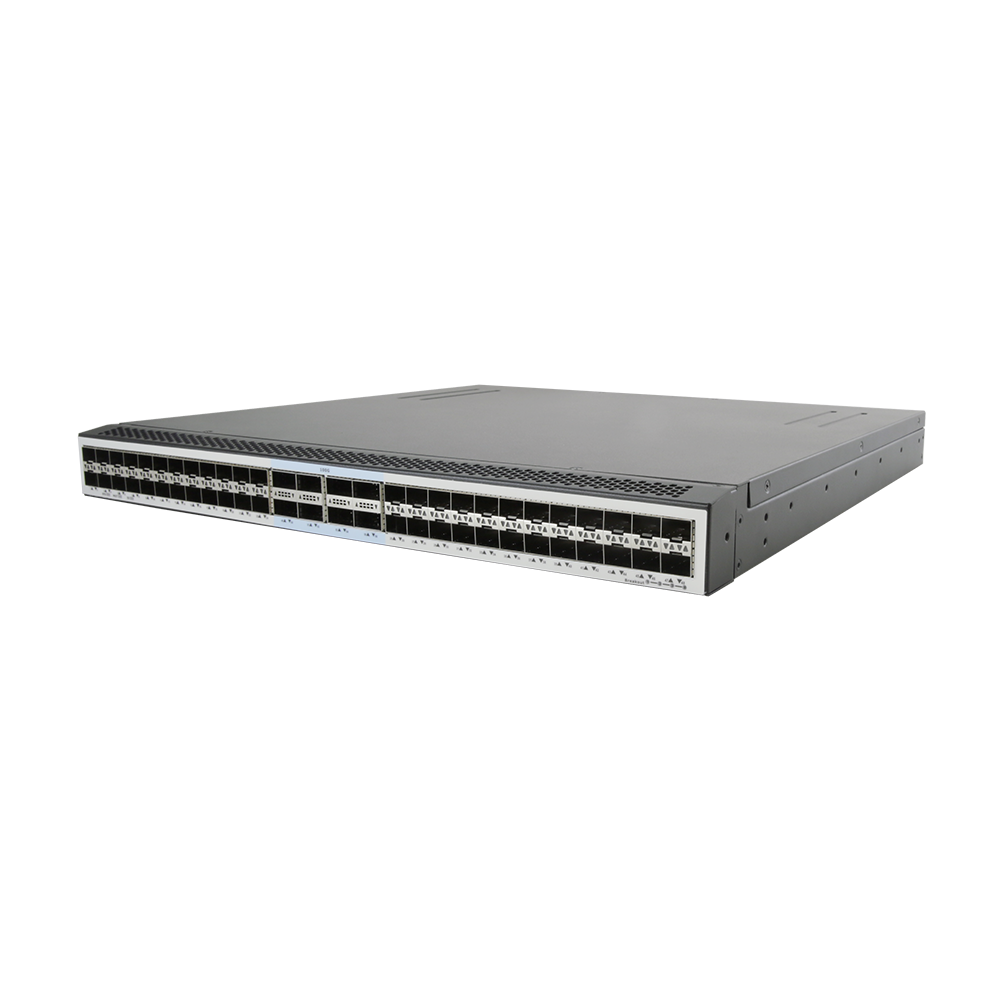

S7548N-8Z Data Center Switch, with 48*25G SFP28 and 8*100G QSFP28 Uplinks, Dual Power, Smart Fan

  • 1+1 hot-swaped Power modules
  • 4 Smart Fan Modules
  • QinQ, BGP, Ipv6

Highligh Features:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MPLS
  8. Layer 3 high-function

Application Scenarios:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
  3. Data Center Networks


Get a quote


S7548N-8Z  25G SFP28 Datacenter Switch which is designed on a domestic high-performance Switch Chip, competently meets the requirements of Metro, Enterprise, Data Center, and Hyperconverged infrastructure(HCI) networks.

System Design for Green and Energy Saving

Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build green and energy-saving networks.

 Customized Profile for Different Deployment Scenarios

The Flexible Table Management (FTM) technology offers multiple table size configuration profiles as optimized choices for different network scenarios.

Intelligent Ethernet OAM: completed network fault management and performance guaranty

With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.

The fault management technique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.

S7548N-8Z support remote management,network monitoring,network fault indication,remote loopback and MIB parameter retrieval according to the standard 802.3ah EFM.

Data Center Features

S7548N-8Z supports leading edge Data Center features: Priority Flow Control (PFC), explicit Congestion Notification (ECN) and Data Center TCP, etc.

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire Ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.

MLAG and overlay features are also good candidates for switches in data center network.

S7548N-8Z supports RPC-API for SDN (Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.


High Reliability

S7548N-8Z support hot-swap CRPS, and Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.

Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.

Patented technology ‘Sysmon’ for CPU status monitoring can take action when system is error.


Outstanding QoS Control

S7548N-8Z  provides 13 hardware queues per-port (8 unicast queues, 4 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.

Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.

Triple-play Service Support with Bandwidth Guaranty for High Quality Application

S7548N-8Z offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.

Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With FOS software, IPTV service and multicast latency control are fully supported.

Comprehensive Network Security Policy

S7548N-8Z supports subscriber-class / switch-class / network-class security control.

IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.

ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm control and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.

Convenient Management features

Support varied management interfaces, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, SSL, etc. to ensure security of management



Items S7548-8Z

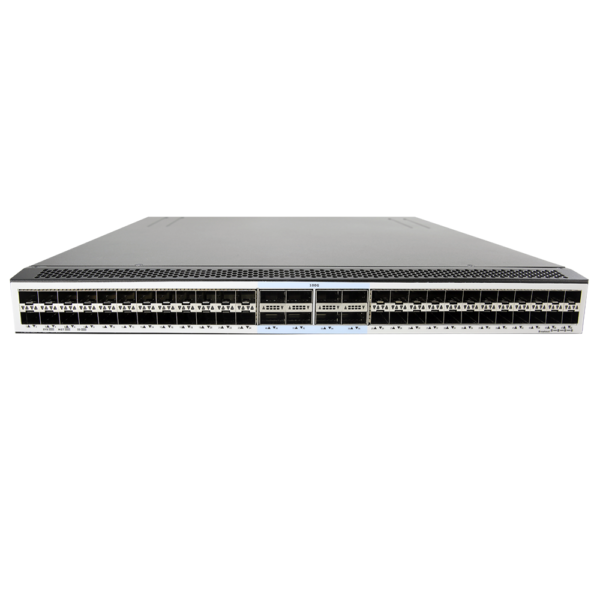

Ethernet Ports 48*25G SFP28,8*100G QSFP28


1*Console (RJ45)

1* 1000Base-T(RJ45)

1* USB Store

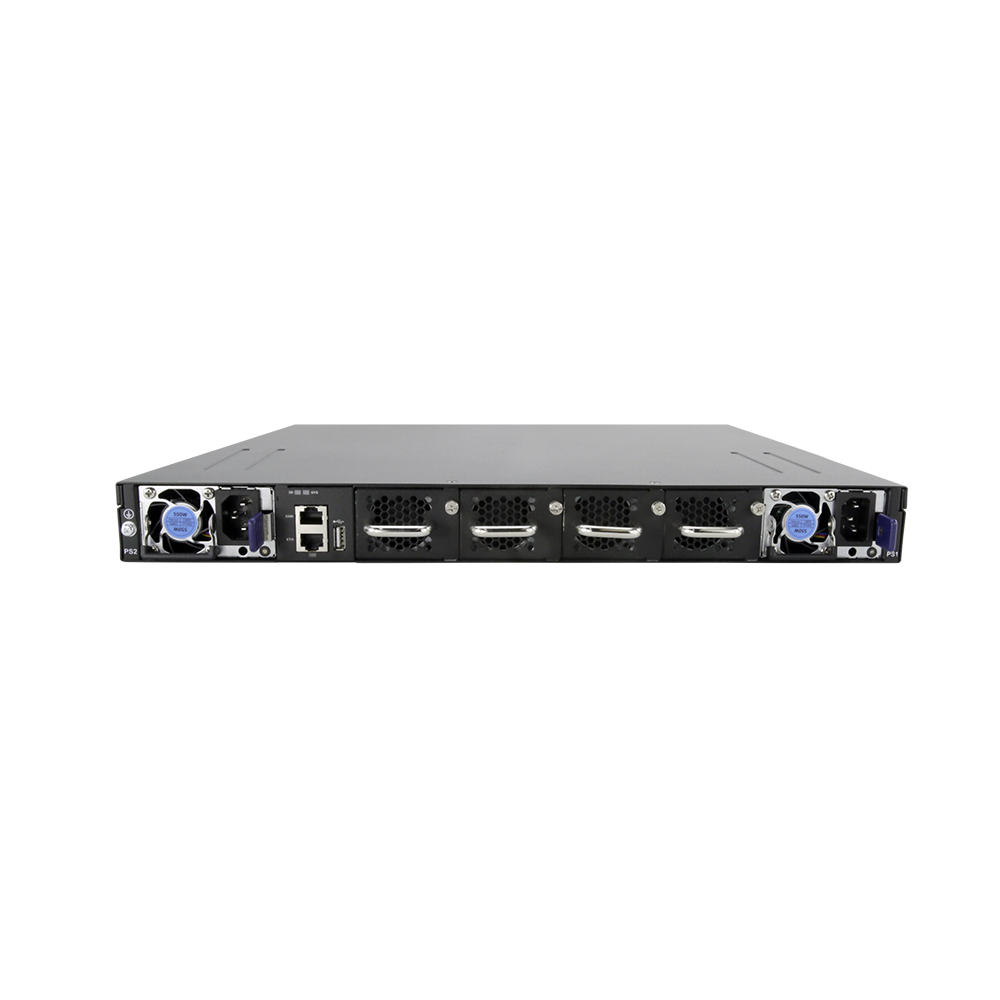

Cooling 4* hot-swap Fan Modules
Airflow Front to rear
Power Supply Dual hot-swap CRPS
Switch capacity 4 Tbps
Throughput 2976 Mpps
Latency 700 ns
Dimension(W*D*H) 440 x436x 480 mm
Weight 9.2kg (Include2 Power Module and 2 Fan Module)
Running Temperature 0ºC to 45ºC
Store Temperature -40ºC to 70ºC
Running Humidity 10% to 90% (No condensation)
Store Humidity 0 to 95% (No condensation)
High-temperature alarm 50ºC

Software Features list

Support ●  No Support ○

Software Features
Feature Description Support
Type Sub Type Feature
Ethernet basic features Ethernet interface Ethernet interface operating modes(full duplex, half duplex, and auto-
Ethernet interface operating rates
Jumbo Frame
Flow-control Flow-control tx/rx
storm-control Port based storm-control
VLAN based storm-control
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast)
Port-isolate L2/L3/All  Port-isolate
Uni-direction isolate
L2 Protocol Tunnel L2 Protocol Tunnel(support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP
Forward mode Store-and-forward
VLAN VLAN Access mode Access/Trunk
Default VLAN
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based)
QinQ Basic QinQ
Selective QinQ
VLAN Mapping(1:1 VLAN Translation)
VLAN Statistics VLAN Statistics
Private VLAN Private VLAN
Voice VLAN Voice VLAN
Guest VLAN Guest VLAN
MAC MAC Address Table Automatic learning and aging of MAC addresses
Hardware Learning
Static and dynamic  MAC address entries
Blackhole MAC
MAC Flapping detect MAC Flapping detect
Port Bridge Port Bridge
LAG Link aggregation Static-LAG & LACP
LAG load balance(SLB)
LAG load balance(DLB)
LAG load balance(RR)
LAG Self-healing
Link aggregation weighting
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol
RSTP Rapid Spanning-Tree Protocol
MSTP Multi-instance Spanning-Tree Protocol
Spanning-Tree Protocol Protection BPDU Filter/Guard
Root Guard
Loop Guard
Anti TC-BPDU attack
ERPS ERPS Single ERPS ring
tangent ERPS rings
intersecting ERPS rings
compatible with RRPP
G.8031 G.8031 G.8031(Ethernet Linear Network Protection)
G.8032 G.8032 G.8032 V1 & V2
Single Ring
Sub Ring
Loop back Detect Loop back Detect Loop back detection
Layer2 Multicast Layer2 Multicast IGMP Snooping IGMPv1/v2/v3 Snooping
Fast leave
Static IGMP snooping group
MVR MVR(Multicast VLAN Registration)
IPv4 Forwarding ARP ARP Static and dynamic ARP entries
Aging of ARP entries
Gratuitous ARP
ARP proxy basic ARP-Proxy
local ARP-Proxy
IPv4 Unicast Routing IPv4 Static Routes IPv4 Static Routes
Black hole Routes
co-work with IP SLA
VRF(Virtual Routing and Forwarding)
uRPF check
RIP RIPv1/v2
Route policy Route-map
IPv4 prefix-list
PBR PBR(Policy-based Routing)
ICMP ICMP redirect
ICMP unreachable
ECMP Self-healing
IP unnumbered IP unnumbered
IPv4 Multicast Routing IGMP IGMPv1/v2/v3
IGMP SSM Mapping
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes
IPv6 Multicast Routing MLD v1/v2 MLD v1/v2
MLD v1/v2 Snooping MLD v1/v2 Snooping
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 Tunnel
6to4 Tunnel 6to4 Tunnel
IPv6 Service DHCPv6 DHCPv6 Relay
DHCPv6 Snooping
IPv6 Prefix List IPv6 Prefix-list
Device reliability features BFD BFD BFD for Static route
BFD for OSPFv2
BFD for VRRP/Track
Track for VRRP
Smart Link Smart Link multi-instance
load balance
MLAG orphan Port
Ethernet OAM EFM EFM (802.3ah) Auto detection
Network fault detection
Network fault handle
remote loop back
CFM CFM (802.1ag) Hardware CCM detect
MAC Ping
MAC Trace
Y.1731 Y.1731 Latency and Jitter measure
QoS features QoS Traffic classification Traffic classification based on COS/DSCP (simple classification)
Traffic classification based on ACL ( complex classification)
Traffic classification based on inner header of the tunnel packets
Traffic behaviors Queue scheduling
Remark the priority fields(COS/DSCP) of the packet based on ACL
Remark the priority fields(COS/DSCP) of the packet based on Table Map
Flow redirection
Flow mirror
Traffic policing Traffic policing based on direction(in/out)  of Port
Traffic policing based on direction(in/out) of VLAN
Traffic policing based on direction(in/out) of flow
Traffic policing based on direction(in/out) of aggregated flow
Traffic shaping Queue based traffic shaping
Port based traffic shaping
Congestion management SP(Strict Priority)scheduling
WDRR(Weighted Deficit Round Robin)scheduling
SP + WDRR mixed scheduling
Congestion avoidance TD(Tail Drop)
WRED(Weighted Random Early Detection)
Traffic statistics Packet counts and bytes statistics based on traffic classification
Packet counts and bytes statistics based on the color after traffic policing
Forwarded and discarded packet counts and bytes statistics
ECN (Explicit congestion ECN tags based on Tail Drop
notification) ECN tags based on WRED
Data Center VARP Virtual gateway VARP(Virtual-ARP)
VARP subnet
Tunnel VxLAN Manual configure VxLAN tunnel
VxLAN distributed gateway
VxLAN active-active access
Interconnect across Data Centers based on VxLAN
L2 Protocol packet pass through
Edit DSCP in VxLan outer header
Support to enable/disable overlay split horizon per-VNI
GRE Tunnel GRE Tunnel
NVGRE Tunnel NVGRE Tunnel
Metro features IPRAN LDP LDP
MPLS Forwarding MPLS Forwarding
MPLS Stats MPLS Stats
Security and management System Security SSH SSHv1/v2
RSA Key generation
AAA Authentication
Dot1x Port based dot1x
MAC based dot1x
Guest VLAN
Basic Mode ACL
Port-group ACL
VLAN-group ACL
Global ACL
Time Range
ARP Inspection ARP Inspection
IP Source Guard IP Source Guard
Port Security Limitation on MAC address learning on interface
VLAN Security Limitation on MAC address learning on VLAN
Control Plane Policy (COPP) Black list/wihte list
Rate limit
CPU Traffic Limit CPU Traffic Limit
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood)
Login filter Telnet/SSH ACL filtering
Telnet/SSH IPv6 ACL filtering
Link-Flapping detection Link-Flapping detection
Network Management DHCP DHCP Server
DHCP Relay
DHCP Snooping
DHCP Client
DHCP Option82
DHCP Option252
sFlow sFlow v4/v5
Latency/Buffer Monitor Latency Monitor
Buffer Monitor
EFD Elephant Flow Detection
NTP NTP(Network Time Protocol)
Err-disable Err-disable detection and recovery
DNS Static DNS Client
Terminal Services Command Line Interface Configurations through CLI (Command Line Interface)
Help information Banner configuration
Help information in English
Terminal service Vty Terminal service
Console Terminal service
Management interface In-band management interface and configuration
Out-band management interface and configuration
User privilege management privileged user proirity and privileged commands
Configuration and maintenance Configuration Management SNMP Network management based on SNMPv1/v2c/v3
Public and private MIB
Public and private Trap
WEB Configuration and management based on WEB UI
RPC-API Configuration and management based on RPC-API
Smart Config Smart Config(Automatically configuration when system start)
OVSDB Configuration and management based on OVSDB
system profile configuration change the system specifications by choose different STM Profiles
License control Feature configuration based on License
Restore factory default Restore factory default configuration
File System File system File system(support directory and file management)
Upload and download Upload and download files through FTP or TFTP
Upload and download files through Xmodem
Debugging And Maintenance Debug per-module Debug features
ICMP Debug
BHM Software process monitor: BHM(Beat Heart Monitor)
Hardware Watch Dog
Log & alarm CPU usage display and  alarm
Memory  usage display and  alarm
Device temperature, PSU, FAN, status display and alarm
User operation logs
Management of logs, alarms, and debugging information
VCT VCT(Virtual Cable Test)
system diagnostics Detailed Diagnostic-information collection
Reboot Manual reboot
Schedule Reboot
Reboot Information logging
network diagnostics Ping
IPv6 Ping
Trace route
mirror Port mirror
Flow mirror
Remote mirror
Multi-destination mirror(m:n)
Use CPU as mirror source
Use CPU as mirror destination and analyze packet
CPU statistics To CPU/From CPU packets statistics
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace)
UDLD UDLD(Unidirectional Link Detection)
unidirectional unidirectional forwarding of the fiber
Loop back port loop back
hardware loop back(internal/external)
System time Time configuration
Version Upgrade system soft ware upgrade upgrade with the local image file
upgrade with the remote TFTP server
Uboot upgrade Online upgrade Uboot

Performers Table

Class Feature Sub Spec Values Note
Ethernet Basic Jumbo frame Maximum Jumbo frame size 9600
Unicast MAC MAC address Capacity 98304
MAC Learning Rate (SW) > 4000pps
MAC Learning Rate (HW) > 10Gbps
Blackhole MAC address capacity 128
Multicast MAC MAC address Capacity 2048
VLAN Instances 4094
VLANs to enable statistics 256
VLAN Mapping Maximum mapping table 64
Maximum rules Num 1024
EVC Maximum EVC Num 4094
Link Aggregation (Static&LACP) Maximum Member Num per group No limitation
Maximum Group Num 64
Load balance key mode static/dlb/rr/resilient/self-healing
Convergence time < 50ms
VLAN Classification Maximum Rule Num 4096
Maximum Group Num 1
Base MAC Capacity 512
Base IPv4 Capacity 448
Base IPv6 Capacity 32
Base Protocal Capacity 7
Ethernet Ring protection STP Convergence time < 30s
RSTP Convergence time < 1s
MSTP Instance Num 64
Convergence time < 1s
ERPS Domain Num 16
Ring Num 1 Primary ring/domain
2 Sub ring/domain
Protection instance Num per Ring 64
Switchover time < 50 ms
G.8031 Group numbers 256
Switchover time < 50 ms
G.8032 Rings 256
Maximum member ports per Ring 256
Switchover time < 50 ms
Ethernet OAM CFM(802.1ag) Maximum Session Num 1024
Maximum domain Num 8
CCM Interval types 7
CCM minimum Interval 3.3ms
Maximum Down MEP Num 1024
Maximum Up MEP Num 1024
Maximum LMEP Num 1024
IPv4 unicast ARP ARP Capacity 12288
IPv4 FIB 56K
ECMP ECMP Group 240 (share with IPv6)
PBR Policy Route Map 64
Policy Based Routing ACE 256
OSPF Maximum Static Neighbors 256
Maximum Summar address 2000
IPv4 multicast IPMC Multicast Routing Table 1024
Multicast routing downstream interfaces 2048 routed interfaces
4096 VLAN interfaces
IGMP Snooping Maximum Groups Num 2048
Maximum Member Num N/A
MVR Maximum Group Num 2048 (Share with V6)
Maximum Member Num 4096
IPv6 unicast Host Route NDP Capacity 2048
IPv6 FIBv6 4096
ECMP Group 240 (share with IPv4)
IPv6 multicast IPMC Multicast Routing Table 512
Number of interfaces that support 1536
Multicast routing table
MVR V6 Maximum Entry Num 2048 (Share with  IPv4)
Maximum Member Num 4096
IP tunnel IP Tunnel Tunnel Peer Capacity 8
QoS Per-port Queue Num Unicast Queue 10
Multicast Queue
Monitor Queue
Packet Buffer System Packet Buffer Capacity 36MByte
Granularity Policer granularity 0~2M: 10K
2M~100M: 40K
100M~1G: 80K
1G~2G: 120K
2G~4G: 250K
Queue Shape granularity 4G~10G: 500K
Port Shape granularity 10k
Flow entry Ingress Port qos ipv4 flow entries 1532
Ingress Port qos ipv6 flow entries
Ingress Port qos flow stats entries 511
ACL IPv4 ACL Ingress Port ACL for IPv4 1488 Ingress and  The Ingress IPv4/IPv6/MAC ACL rule share the Ingress resource and the Egress rules share the Egress resource
Ingress VLAN ACL for IPv4
Egress Port ACL for IPv4 464
Egress VLAN ACL for IPv4
IPv6 ACL Ingress Port ACL for IPv6 744
Ingress VLAN ACL for IPv6
Egress Port ACL for IPv6 232
Egress VLAN ACL for IPv6
ACL Flow stats Ingress  ACL flow stats entries 1022 Egress ACL rules use separate resource pool
Egress  ACL flow stats entries 511
CoPP CoPP rules 249
CoPP flow stats entries 249
UDF UDF rules 256
UDF flow stats entries 128
Security IP Source Guard IPv4 maximum rules Num 768
IPv6 maximum rules Num 64
802.1x base MAC Maximum Entries 256
DHCP Snooping Maximum bound entry 4096
Reliability BFD Maximum Session Num share 128
S-BFD Maximum Session Num
VRRP Maximum Group Num 63
Smart Link Maximum Group Num 16
Maximum Instance Num 64
Switchover time <50ms
Monitor Link Maximum group Num 16
Maximum up-link Num per group 16
Data center VARP Virtual IP Num per Port 15
VXLAN VXLAN tunnel 4092
VNI 1024
VTEP Peer 24576
VXLAN Gateway MAC for DVR 512
