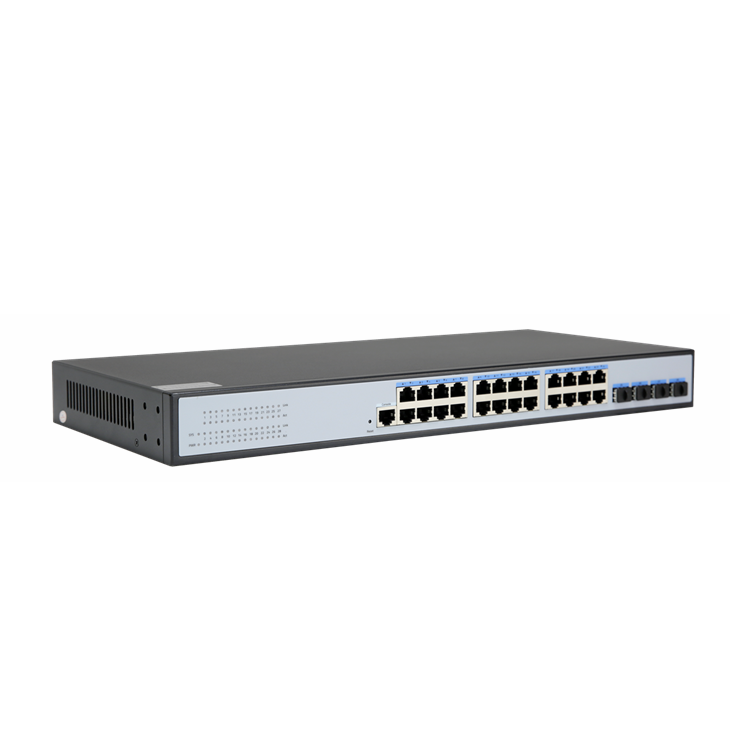

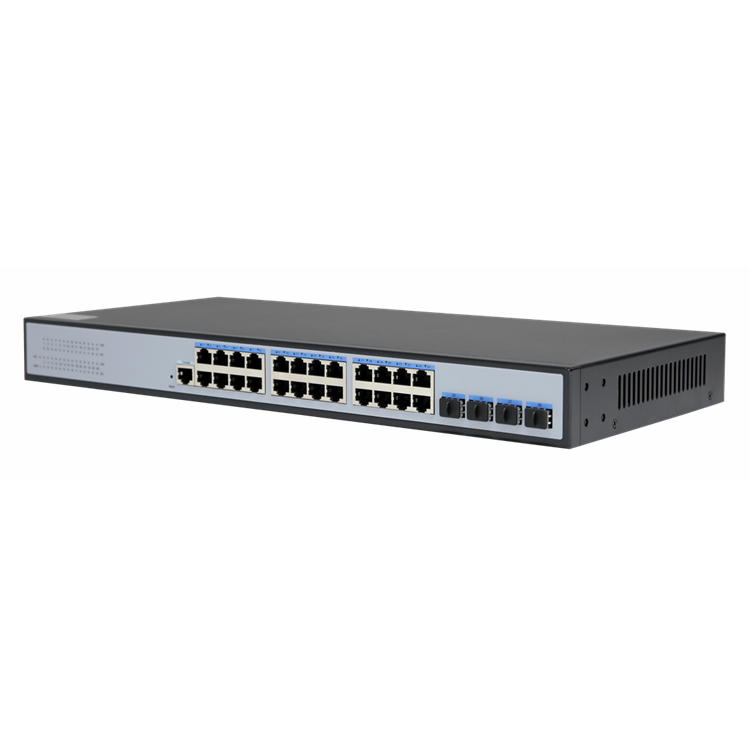

S2624-4S Managed Gigabit Ethernet Switch(24 GE Base-T and 4 SFP)

  • Provides 28 optical and electrical gigabit interfaces in total
  • Multiple management modes include CLI, web, and SNMP
  • Line speed swap capacity, low jitter, low delay
  • Rich L3 features

Highlight Features:

  1. QinQ
  2. LAG
  3. MSTP
  4. OSPF
  5. Layer 3 Basic-function

Application Scenarios:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
Category:
Get a quote
  • Previous Product
  • S2624-4X 10Gb Uplink 24 Port Gigabit Managed Ethernet Switch(24*Gb Base-T and 4*10Gb SFP+)
  • Next Product
  • S2608P-2S Gigabit Managed PoE Switch(8GE Base-T and 2 GE SFP)

Description

Product Description

28-Port Managed Gigabit Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.

The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to the full duplex or half duplex mode; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/ MDIX auto flip function, non-blocking line speed transmission of all ports.

It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.



Main Feature

Support 24* Gigabit Ethernet Ports+ 4* Gigabit SFP Ports+1* Console Port

SupportIEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, Storage and forwarding

Ethernet ports support 10/100/1000M adaptive

Adopt store-and-forward switching mechanism

Adopt store-and-forward switching mechanism

Fan-less design, natural Cooling, 1U Rack Mount

Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication

Support WEB, TELNET, CLI, SSH, SNMP, RMON management



Application Environment

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

DATASHEET

CHARACTERISTICS

I/O Interface

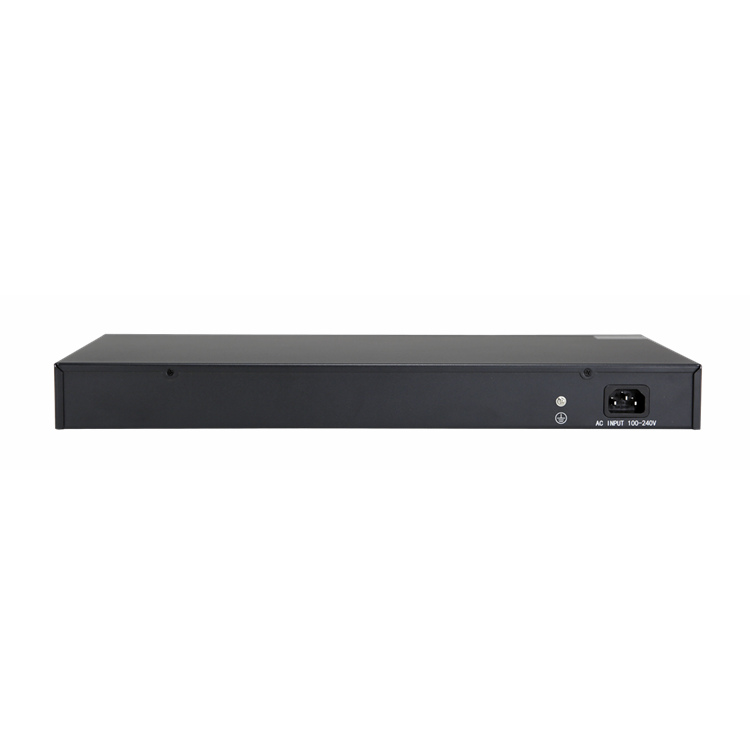

Power AC INPUT (100-240V)
Ethernet 24* Gigabit Ethernet Ports

4* Gigabit SFP Ports

1* Console Port
Performance
Bandwidth 56Gbps
Packet Forwarding Rate 41.66Mpps
Package Cache 4Mb
Memory 128M
Flash Memory 16M
MAC Address 8K
VLANs 4096
Jumbo Frame 9.6Kbytes
Transfer Mode Storage & Forwarding
MTBF 100000 Hours
Standard
Network Protocol IEEE802.3 (Ethernet)

IEEE802.3u (Rapid Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet Optic Fiber)

IEEE802.3x (Flow Control)

IEEE 802.3az（Energy-efficient Ethernet）

IEEE 802.3ad（Link aggregation）

IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol STP

IEEE 802.1w Rapid Spanning Tree Protocol RSTP

IEEE 802.1s Multiple Spanning Tree Protocol MSTP

IEEE 802.1Q （Virtual LAN）

IEEE 802.1p （VLAN Label）

IEEE 802.1X （User authentication）
Optical Medium Multi-mode fiber: 50/125, 62.5/125, 100/140um

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um
Network Medium 10Base-T: Cat 3, 4, 5 or above UTP(≤100m)

100Base-TX: Cat 5 or above UTP(≤100m)

1000Base-TX: Cat 5 or above UTP(≤100m)
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),

EN61000-4-4 (EFT),

EN61000-4-5 (Surge)
Certification
Safety Certification CE, FCC, RoHS
Environment Standard
Working Environment Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%，non-condensing

Storage Temperature: 5%~90%，non-condensing
Function Indicator
Indicator PWR(Power Indicator); SYS(System Light); Link/Act(Link & Data)
PWR On: Powered On

Off: Powered Off
SYS Off: System Off

On: System On
Link/ACT On: No Data

Flashing: Data Transmit

Off: Link Connection Blocked
Physical Specification
Structure Size Product Size: 440*204*44mm

Package Size: 500*290*85mm

Product N. W: 2.45kg

Product G. W: 3.06kg
Packing Info MEAS: 520*445*310MM

Packing Qty: 5PCS

Packing Weight: 16.3 KG
Power Voltage Machine Input Voltage: AC 100-240V;

Built-in power output: DC12V3A; Total Power: 36W
Package List Switch: 1PCS;

Power cable: 1PCS;

Serial cable: 1PCS;

Instruction manual: 1PCS;

Certificate of quality: 1PCS;

Warranty card: 1PCS;

Mounting ear: 1 Pair



Software Function

Layer 2 Software Function
Port Management Enable/Disable Port
Speed, Duplex, MTU Setting
Flow-control
Port Information Check
Port Mirroring Supports both side-way port mirroring
Port Speed Limit Support port rate limiting, the granularity of rate limiting is 32Kbps
Port Isolation Support port isolation Settings
Storm Suppression Supports unknown unicast, unknown multicast, and broadcast storm suppression
Link Aggregation Support static manual aggregation

Support LACP dynamic aggregation
VLAN Access
Trunk
hybrid
Support VLAN division based on port, protocol, and MAC address, VLAN tunnel
Support GVRP dynamic VLAN registration
Voice VLAN
MAC Support static addition, deletion
MAC address learning limit
Support dynamic aging time setting
Spanning Tree 802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol(RSTP)
802.1s Multi Spanning Tree Protocol(MSTP)
Multicast Support static addition, deletion, IGMP-snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDM Support SFP/SFP+DDM
Layer 3 Function
Routing Function Static routing
IP IPV4, IPV6 Interface
ARP Support ARP
Extended Function
ACL Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port
QOS Based on 802.1p (COS) classification
Based on DSCP classification
Classification based on source IP, destination IP, and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP Support LLDP link discovery protocol
User Setting Add/delete users
Log User login, operation, status, events
Anti-attack DOS Defense
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
Certification Support 802.1x port authentication
Support AAA certification
Network diagnosis Support ping, telnet, trace
System Management Device reset, configuration save/restore, upgrade management, time setting, etc
Management Function
CLI Support serial port command line management
SSH Support SSHv1/2 remote management
TELNET Support telnet remote management
WEB Support Layer 2 settings, Layer 2 and Layer 3 monitor
SNMP SNMP V1/V2/V3
Support trap：Cold Start, Warm Start, Link Down, Link Up
RMON Support RMON v1
Other Functions Support DHCP Snooping, Option82, DHCP Server


Other Functions



 Support dynamic ARP detection
Support TACACS+ certification
Support DNS Setting
Support port security setting
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
