S2608-2S Managed Gigabit Intelligent Ethernet Switch(8 GE Base-T + 2 GE SFP)

  • Provides optical and electrical gigabit interfaces
  • Multiple management modes include CLI, web, and SNMP
  • Line speed swap capacity, low jitter, low delay
  • Rich three layers of features

Highlight Features:

  1. ACL
  2. LAG
  3. MSTP
  4. QoS
  5. Layer 2 function

Application Scenarios:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
Category:
Get a quote
  • Previous Product
  • S2608P-2S Gigabit Managed PoE Switch(8GE Base-T and 2 GE SFP)
  • Next Product
  • S5548C-4X L3 Managed switch with 48*1000M Base-T and 4*10G SFP+ uplink, Dual Power Modules, Dual Hot swap Fan Modules

Description

Product Description

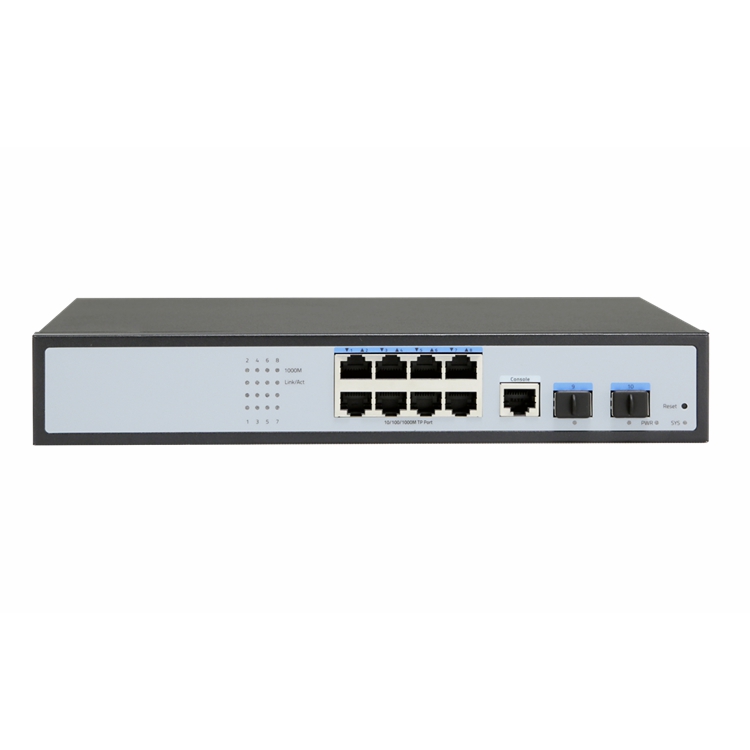

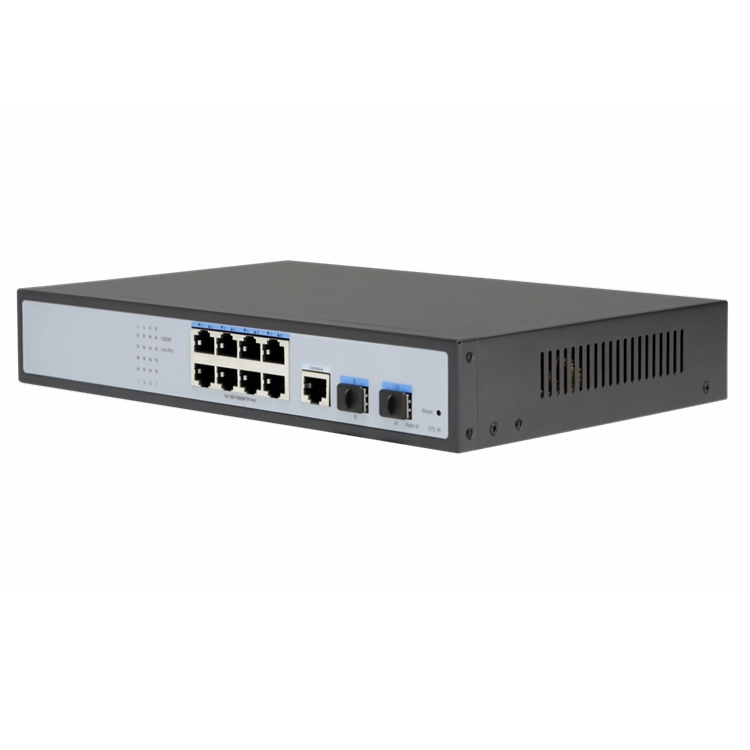

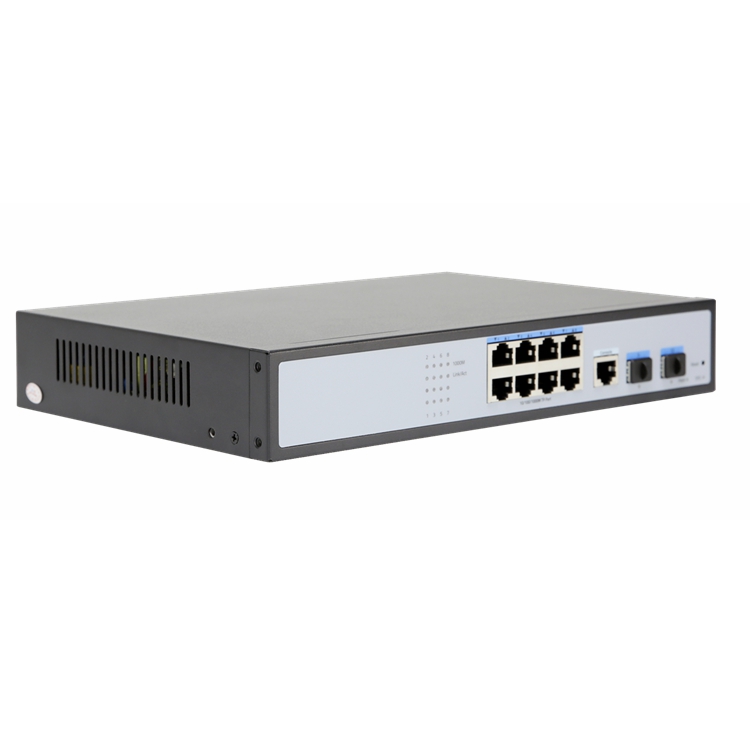

10 Ports Managed Gigabit Intelligent Ethernet Switch, Support 8 * 10/100/1000 adaptive electrical ports, 2 * 1 Gb SFP ports, 1 console port, black iron shell design, DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.

The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to the full duplex or half duplex mode; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/ Mdix auto flip function, non blocking line speed transmission of all ports.

It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.



Main Features

8 x 10/100/1000Mbps auto-sensing Ports, 2x 1000Mbps SFP Ports, 1 x Console Port;

Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；

Support port auto flip (Auto MDI/MDIX)；

Panel indicator monitoring the status and help failure analysis;

Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;

Support WEB, TELNET, CLI, SSH, SNMP, RMON management;

Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact



Application Environment

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

DATASHEET

CHARACTERISTICS

I/O Interface
Power DC 12V
Ethernet 8*10/100/1000Mbps Ethernet Port

2*1000Mbps SFP Port

1*Console Port
Performance
Bandwidth 20Gbps (non-blocking)
Packet Forwarding rate 14.88Mpps
Packet Buffer 4M
Memory Capacity 128MB
Flash Capacity 16MB
MAC Address 8K
VLANs 4096
Jumbo Frame 9.6Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Standard
Network protocol IEEE802.3: 10Base-T

IEEE802.3u :100Base-TX

IEEE802.3ab: 1000Base-TX

IEEE802.3z :1000Base-FX

IEEE 802.3x：Flow control

IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q：VLAN Bridge Operation

IEEE 802.1x：Client/Server Access Control and Authentication Protocol

IEEE 802.3ad：Standard method for performing link aggregation

IEEE 802.1d：STP

IEEE 802.1s：MSTP

IEEE 802.1w：RSTP
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)、

EN61000-4-4 (EFT)、

EN61000-4-5 (Surge)
Network Medium



 10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)
optical characteristics multi mode：850/1310nm （0-2KM）

Single mode：1310/1550/1490nm（0-120KM）
Protection
Security Certificate CE、FCC、RoHS
Environment
Working Environment Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing
Indication
LED Indicators PWR、SYS、Link、ACT
Mechanical
Structure Size Product Size：268*181*44mm

Package Size：312*262*84mm

Product Net-Weight：1.01KG

Product Gross-Weight：1.54KG
Packing Info MEAS：540*435*332mm

Packing Qty：10PCS

Packing weight：16.4KG
Power Voltage Power Input Voltage: AC 100-240 V

Power Output: 12V1A
Package List Ethernet switch: 1 Set、Instruction manual: 1 PCS、Certificate: 1 PCS、

Power cord:1PCS、Serial cable: 1PCS、Power:1PCS


Software Function


Port Management Enable/Disable Port
Speed、Duplex、MTU Setting
Flow-control
Port Information Check
Port Mirroring Supports both side-way port mirroring
Port Speed Limit Supports port-based input / output bandwidth management
Port Isolation Support the downlink port isolation, and can communicate with the uplink port
Storm Suppression Supports unknown unicast, multicast, unknown multicast,

broadcast type storm suppression

Storm suppression based on bandwidth regulation and storm filtering
Link Aggregation Support static manual aggregation

Support LACP dynamic aggregation
VLAN Access
Trunk
Hybrid
Support port, protocol, MAC-based VLAN partitioning
Support GVRP dynamic VLAN registration
Voice  VLAN
MAC Support static addition, deletion
MAC address learning limit
Support dynamic aging time setting
Spanning tree Support STP spanning tree protocol

Supports RSTP Rapid Spanning Tree Protocol

Supports MSTP Rapid Spanning Tree Protocol
Multicast Support static addition, deletion

IGMP-snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDM Support SFP/SFP+DDM
ACL Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port
Qos Based on 802.1p (COS) classification
Based on DSCP classification
Classification based on source IP, destination IP, and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP Support LLDP link discovery protocol
User settings Add/delete users
Log User login, operation, status, events


Anti-attack

 DOS defense
Support CPU protection and limits the rate of sending cpu packets
ARP binding (IP, MAC, PORT binding)
Certification Support 802.1x port authentication
Support AAA certification
Network diagnosis Support ping、telnet、trace
System Management Device reset, configuration save/restore, upgrade management, time setting, etc.
CLI Support serial port command line management
SSH Support SSHv1/2 remote management
TELNET Support telnet remote management
WEB Support Layer 2 settings, Layer 2 and Layer 3 monitor
SNMP SNMP V1/V2/V3
Support trap：ColdStart、WarmStart、LinkDown、LinkUp
RMON Support RMON v1
Other functions Support DHCP  Snooping、Option82
Support dynamic ARP detection
Support TACACS+ certification
Support DNS certification
Support port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
