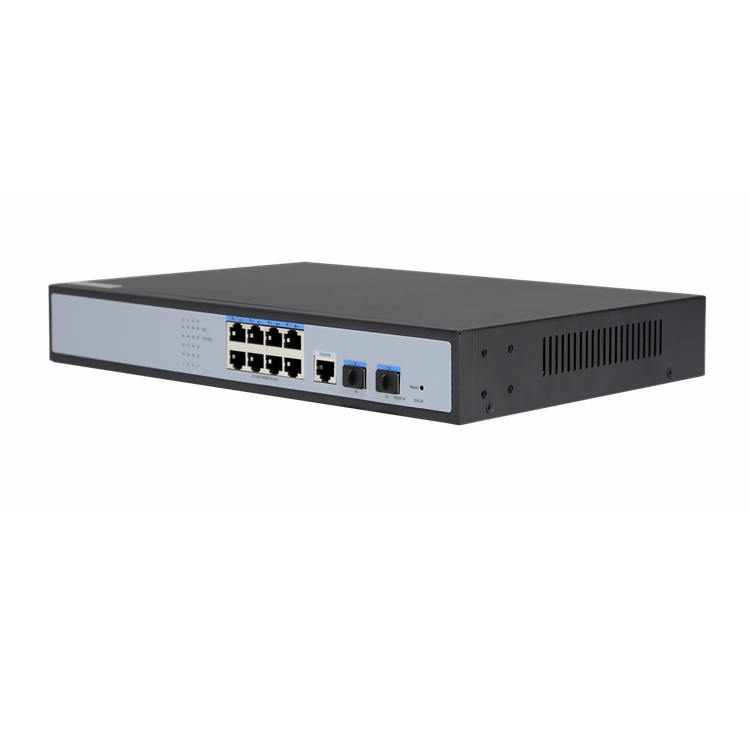

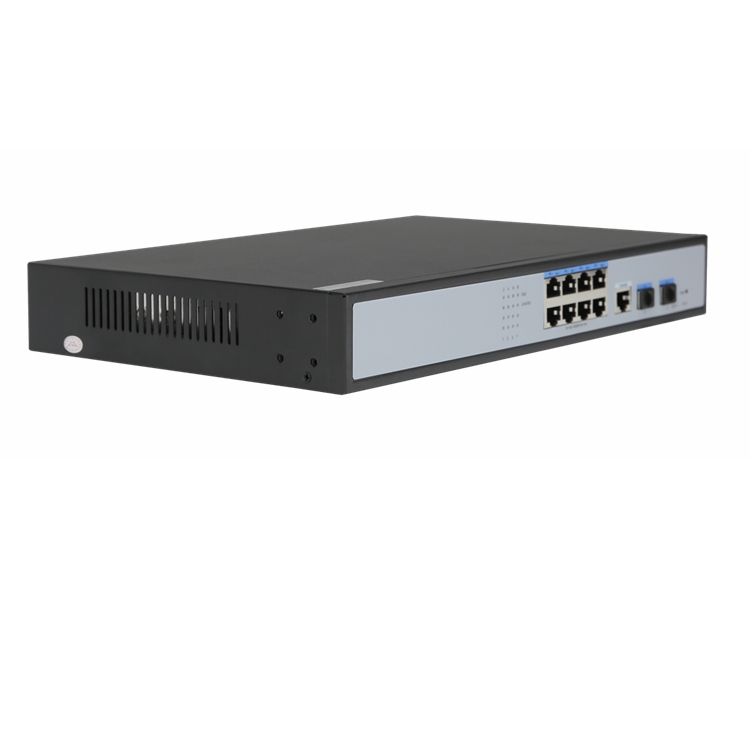

S2608P-2S Gigabit Managed PoE Switch(8GE Base-T and 2 GE SFP)

  • 8 POE Base-T ports, PoE Budget is 150W
  • Multiple management modes include CLI, web, and SNMP
  • Line speed swap capacity, low jitter, low delay
  • Full L2 features

Highlight Features:

  1. POE
  2. QinQ
  3. LAG
  4. MSTP
  5. OSPF
  6. Layer 3 Basic-function

Application Scenarios:

  1. Enterprise /Campus Networks
  2. Telecommunication Operators Networks
Category:
Get a quote
  • Previous Product
  • S2624-4S Managed Gigabit Ethernet Switch(24 GE Base-T and 4 SFP)
  • Next Product
  • S2608-2S 10 Ports Managed Gigabit Intelligent Ethernet Switch(8 GE Base-T + 2 GE SFP)

Description

Product Description

The 10-Ports Gigabit Managed PoE Switch, it adopts high-quality and high-speed network IC and the most stable PoE Chip set, the PoE ports meet the IEEE802.3af/at standard, this series of PoE switches provides seamless connection to 10/100/1000M Ethernet,with automatically detective function on PoE port,power the devices with IEEE802.3af/at standard but only transmit data without forcibly power for Non-PoE devices.

PoE  (Power over Ethernet) provides DC Power for IP-based terminals (such as IP telephones, wireless access AP, and network cameras) while transmitting data signals. The devices that receive DC Power are called Power receiving devices.



Main Features

8*10/100/1000Mbps PoE Ports, 2*Gigabit SFP Uplink Ports, 1* Console Port

Support IEEE802.3, IEEE802.3x,IEEE802.3u,IEEE802.3ab, IEEE802.3z standard

Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)

Ethernet port supports 10/100/1000M adaptive

Support PoE management, POE watchdog

Panel indicator monitoring the status and help failure analysis

Support 1U rack installation

Support 802.1x port authentication, AAA authentication, support TACACS+authentication

Support WEB, TELNET, CLI, SSH, SNMP, RMON management

The ports support 6KV Surge Protection



Application Environment

Metro Optical Broadband Network:Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network:Suitable for financial, government, oil, railway,electric power, public security, transportation,education and other industries

Multimedia transmission:Integrated transmission of images, voice and data, suitable for remote teaching, conference TV,videophone and other applications

Real-time monitoring:Simultaneous transmission of real-time control signals, images and data.

DATASHEET

CHARACTERISTICS

Specifications
I/O Interface

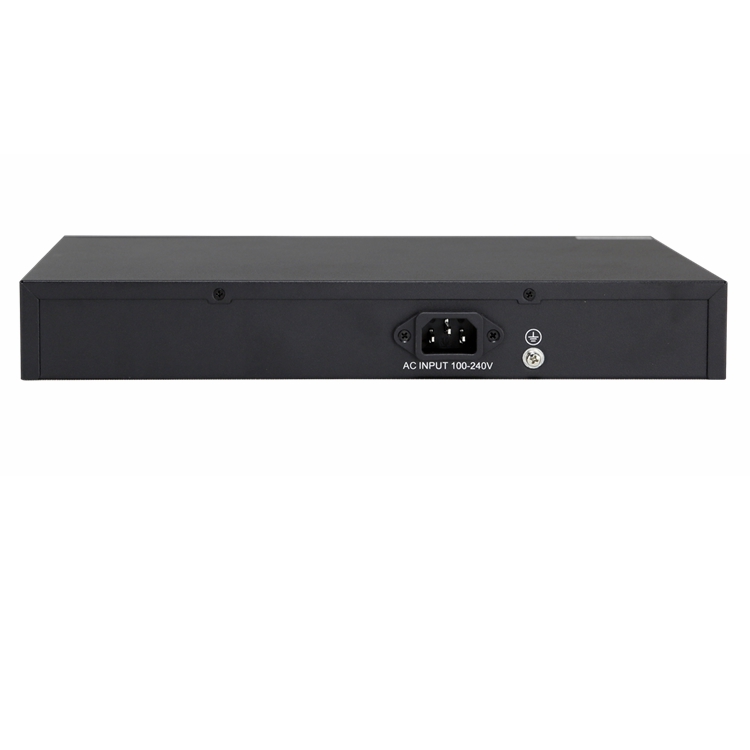

Power AC INPUT   (100-240V)
Ethernet 8 * 10/100/1000Mbps PoE Port

2* 1000Mbps SFP Port

1 * RJ45 Console Port
Performance
Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Packet Buffer Memory 4M
Flash Memory 16MB
DDR SDRAM 128MB
MAC Address 8K
Jumbo Frame 9.6Kbytes
Forwarding Mode Storage & forward
MTBF 100000 Hours
Standard
Network Protocol IEEE802.3 (Ethernet MAC Protocol)

IEEE802.3u (100BASE-TX Fast Ethernet)

IEEE 802.3ab (1000BASE-T Gigabit Ethernet)

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)

IEEE802.3x (Flow Control)

IEEE 802.3ad (LACP)

IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol (Spanning Tree Protocol)

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1Q   (VLAN Bridge Operation)

IEEE 802.1p   (VLAN Label)

IEEE 802.1X  (Client/Server Access Control and Authentication Protocol)
PoE Protocol IEEE802.3af  (15.4W)

IEEE802.3at   (30W)


Industry Standard

 EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)
Network Medium 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX : Cat5 or above UTP/STP(≤100m)

1000Base-TX : Cat5 or above UTP/STP(≤100m)
Fiber Medium Multi-mode Fiber: 50/125, 62.5/125, 100/140um

Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certificate CE, FCC, RoHS
Environment
Working Environment Working Temperature ：-10~50°C

Storage Temperature ：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature ：5%~90%，non-condensing
Physical Specification
Structure Size Product Dimensions: 320*207*45mm

Packing Dimensions: 366*312*71mm

Product N.W: 1.65kg

Product G.W: 2.24kg
Packing Info Carton Dimensions: 382*332*378mm

Packing quantity: 5 sets

Packing weight: 12.2kg
Power Voltage Input voltage: AC 100-240 V/50-60Hz

Power supply: 52V2.88A  150W
Package List Ethernet switch1 Set, Instruction manual 1 PCS, Certificate1 PCS, Power cord 1PCS Serial cable 1PCS, Brackets 1 pair
Function Indication
LED Indicators PWR, SYS, PoE, Link/ACT
PWR (Power Indicator) Lighting：Powered

Un-Light：No Power


SYS (System Indicator)

 Flashing: not start or fail

Lighting: System Running
PoE (PoE Indicator) Lighting：PoE on

Un-Light：PoE off


Link/ACT (Link &Data Indicator)

 Lighting: Link connection

Flashing: Data transmission

Un-Light: Link disconnect
Reset Short press restart, long press 5 seconds to restore factory Settings





Software function



Software Function
Basic Function Support hardware watchdog, factory reset, system and port LED
Support global information, statistical information, log information
Support User management, alarm management, configuration management
Support Port rate, duplex, flow control, max frame length configuration
Support Port mirroring, port speed limit, port energy saving
PoE Function Support PoE time management
Support PoE automatic monitoring / PoE Watchdog
Support PoE port power configuration
Software Function
VLAN Support 4K VLAN
Support 802.1Q VLAN, based on port VLAN
Support Access, Trunk, Hybrid VLAN mode
Support GVRP(Vlan registration protocol)
Support MAC VLAN, IP VLAN
Support Voice VLAN
MAC Address Support MAC address automatic learning and aging
Support Static, dynamic, filtered address table
Security Features Password protection
Support Restrict user access based on port number, IP address, MAC address
Support HTTPS, SSH V1/V2
Support VLAN-IP-MAC-PORT binding
Support ARP detection, IP source protection, DoS protection
Support DHCP Snooping 、DHCP Attack protection
Support 802.1X certification
Support AAA (Authentication, Authorization, Accounting), Support RADIUS+
Support Port security, port isolation
Access Control Support L2(Layer 2)~L4(Layer 4) Packet filtering function
Support Port mirroring, flow rate limiting, QoS remarking
QOS Support 8 port queues
Support Port priority, 802.1P priority, DSCP priority
Support SP, WRR Priority scheduling algorithm
Spanning Tree Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) & MSTP(IEEE 802.1s) protocol
Support Multi-instance, Support Aggregate interface
Support BPDU Protection
Multicast Support IGMP v1/v2/v3 Snooping
Support MLD v1/v2 Snooping
